Distillation Stills
Showing all 5 results
- Distillation Stills

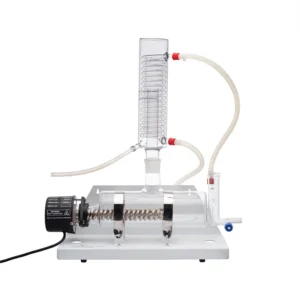

Water Still
Supertek’s Water Still are the most effective, economic method of producing ultra-pure pyrogen free water for educational laboratory. The Water Still is easy to use, safe to operate and designed for trouble free continues operation. The unit consists of horizontal Heat Resistance Borosilicate Glass Boilers, Condensers and metal Heater.
Features:
- Compact, simple to use
- Economical and ideal for colleges and general laboratory use
- Powder coated stand for rust free operation
- Provision for easy cleaning of Boiler
- Chromium plated Heater fitted with a thermostat
- All tube connections are made with screw thread connector
Technical Specifications:
- Distillation type: Single Stage
- Distillation output: 4 Ltr/Hr
- Biological Activity: Pyrogen Free
- PH: 5.0 – 6.5
- Conductivity, µs/cm: 3.0 – 4.0
- Power requirement: 3kW
- Input voltage: 230 V AC ± 10, 50-60 Hz
CH14030 - Distillation Stills

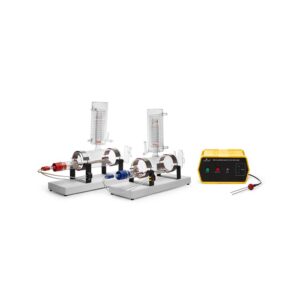

Borosilicate Distillation Units
Supertek Glass Distillation Unit continues to be the most effective, efficient means of producing ultra-pure water for a variety of laboratory uses. It consists Borosilicate boilers & condensers, and quartz heaters. The advantages of quartz heaters over metal heaters are that they do not react with acids and water during cleaning or at high temperatures. They are also simple to assemble and disassemble.
Features:
- Compact, simple to use.
- Economical and ideal for colleges and general laboratory use
- Powder coated stand for rust free operation
- Provision for easy cleaning of Boiler
Technical Specifications:
- Distillation type: Single Stage & Double Stage
- Available capacity: 2 Ltr & 4 Ltr
- Input voltage: 230 V AC ± 10, 50-60 Hz
- Biological Activity: Pyrogen Free
- PH: 6 – 7
- Conductivity S/cm: <1×10-6
Note: Distilled water is free from metal ions and bacteria. Hence it is difficult to measure pH and conductivity values. Use of soft water is recommended to prevent scaling in the boiler and to improve quality of distillate.
Accessories (Optional)
Distillation Apparatus Power Supply (DAPS): The unit powers off heaters if water level falls below heating coil, thus safeguarding heaters. When water level is restored, distillation resumes.
CH14031 - Distillation Stills
Automatic Water Distillation Equipment (Cabinet Model)
Supertek’s fully automatic water distillation equipment and can be used in research laboratories, hospitals etc. This apparatus is equipped with safety features to simplify and enhance the distillation process.It is manufactured from 3.3 exp borosilicate glass.
Features:
- Replaceable silica sheathed quartz heater
- Powder coated chamber for rust free operation
- The condenser’s cooling water is re-circulated into the boiling chamber, hence saving energy
- Boiler is provided with replaceable constant level device for easy draining and cleaning
- Gate valve: conserves cooling water wastage in case of power failure
- Flow switch: unit will shut off in case of cooling water failure
- Temperature switch: shuts off the unit if temperature rises than set value in the boiler
- Unit will shut off if water level in the boiler falls below the heater
- Reservoir level sensor: this helps in automatic working of the water distillation equipment Depending on the water level in the reservoir it will automatically switch on/off the equipment
- The front cover is easily removable making the access to the glass parts very easy
Technical Specifications:
- Distillation type: Single Stage& Double Stage
- Distillation output: 2 ltr&4 Ltr/Hr
- Biological Activity: Pyrogen Free
- Conductivity, µs/cm: 0.8-2.0
- Input voltage: 230 V AC ± 10, 50-60 Hz
CH14032 - Distillation Stills
Mono Quartz Distillation Units
Supertek mono quartz distillers are compact and made of high purity quartz, so they meet the requirements of research, and industrial laboratories that require distilled water free of metallic ions and bacteria.
Boiler is made of high-purity quartz and condenser is of quartz/borosilicate material. The unit mounted on a power coated metal stand. Fiber glass insulated wire and silicone rubber boot resist high temperature.
Features:
- Pyrogen free, free of heavy metals
- Efficient borosilicate/quartz coil condenser
- Quartz heater
- Compact, simple to use
- Powder coated stand for rust free operation
Technical specifications:
- Available capacity: 2.5, 5, 10 ltr
- Input voltage: 230 v ac ± 10, 50-60 Hz
- Biological activity: pyrogen free
- Ph: 6 – 7
- Conductivity s/cm: <3×10-6
Note: Distilled water is free from metal ions and bacteria. Hence it is difficult to measure ph and conductivity values. Use of soft water is recommended to prevent scaling in the boiler and to improve quality of distillate.
Accessories (optional)
Distillation apparatus power supply (daps): The unit powers off heaters if water level falls below heating coil, thus safeguarding heaters. When water level is restored, distillation resumes.
* Indicates 3 Phase connection
CH14042 - Distillation Stills
Double Quartz Distillation Units
Supertek quartz double distillers are compact and made of high purity quartz, so they meet the requirements of research, and industrial laboratories that require distilled water free of metallic ions and bacteria.
Boiler is made of high purity quartz and condenser is of quartz material. The unit mounted on a power coated metal stand. Fiber glass insulated wire and silicone rubber boot resist high temperature.
Features:
- Pyrogen free, Free of heavy metals
- Distilled water output is immediate
- Efficient Quartz coil condenser
- Compact, simple to use
- Powder coated stand for rust free operation
Technical Specifications:
- Available capacity: 1.5, 2.5, 3.5, 4, 5 Ltr/Hr
- Input voltage: 230 V AC ± 10, 50-60 Hz
- Biological Activity: Pyrogen Free
- PH: 6.9 – 7
- Conductivity S/cm: <1×10-6
Note: Distilled water is free from metal ions and bacteria. Hence it is difficult to measure pH and conductivity values.Use of soft water is recommended to prevent scaling in the boiler and to improve quality of distillate.
Distillation Apparatus Power Supply (DAPS): The unit powers off heaters if water level falls below heating coil, thus safeguarding heaters. When water level is restored, distillation resumes.
* Indicates 3 Phase connection
CH14045
