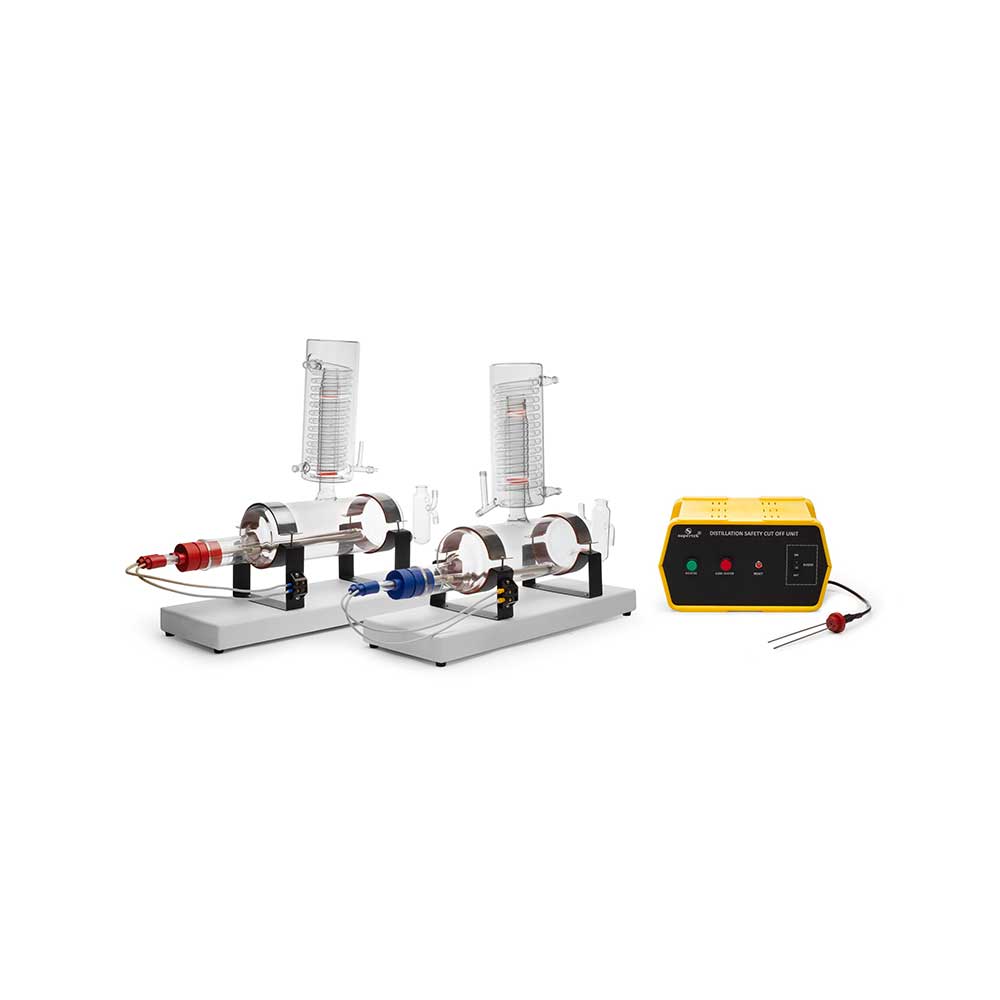

Borosilicate Distillation Units

Availability:

In Stock


Supertek Glass Distillation Unit continues to be the most effective, efficient means of producing ultra-pure water for a variety of laboratory uses. It consists Borosilicate boilers & condensers, and quartz heaters. The advantages of quartz heaters over metal heaters are that they do not react with acids and water during cleaning or at high temperatures. They are also simple to assemble and disassemble.

Features:

  • Compact, simple to use.
  • Economical and ideal for colleges and general laboratory use
  • Powder coated stand for rust free operation
  • Provision for easy cleaning of Boiler

Technical Specifications:

  • Distillation type: Single Stage & Double Stage
  • Available capacity: 2 Ltr & 4 Ltr
  • Input voltage: 230 V AC ± 10, 50-60 Hz
  • Biological Activity: Pyrogen Free
  • PH: 6 – 7
  • Conductivity S/cm: <1×10-6

Note: Distilled water is free from metal ions and bacteria. Hence it is difficult to measure pH and conductivity values. Use of soft water is recommended to prevent scaling in the boiler and to improve quality of distillate.

Accessories (Optional)

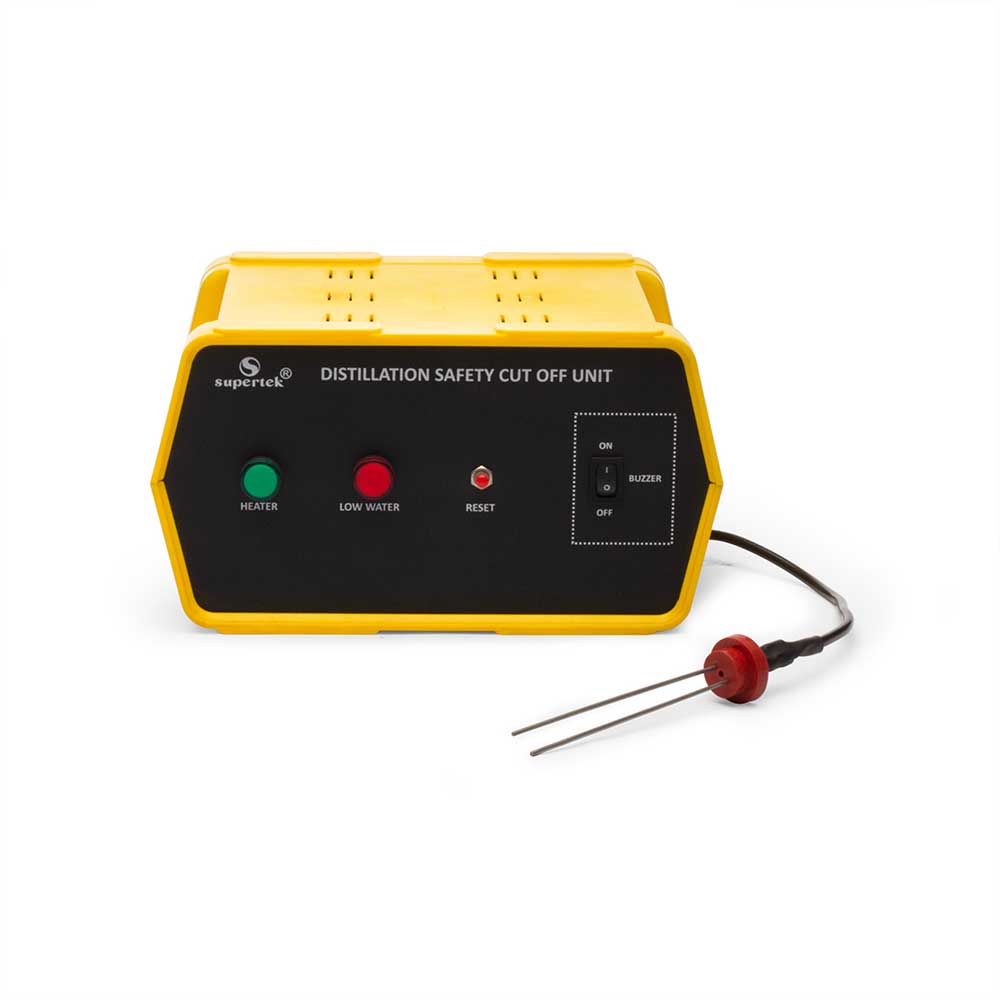

Distillation Apparatus Power Supply (DAPS): The unit powers off heaters if water level falls below heating coil, thus safeguarding heaters. When water level is restored, distillation resumes.

CH14031

Available Options

Cat. No.Distilled Water Output, L/HrStageCooling Water Consumption, L/HrTotal Power Rating, kWQuantity
CH14031-20S2.0Single Stage501.5
CH14031-40S4.0Single Stage603.0
CH14031-20D2.0Double Stage1203.0
CH14031-40D4.0Double Stage1506.0
Distilled Water Output, L/Hr

2.0, 4.0

Stage

Single Stage, Double Stage

Cooling Water Consumption, L/Hr

50, 60, 120, 150

Total Power Rating, kW

1.5, 3.0, 6.0
