SuperTap, water purification system

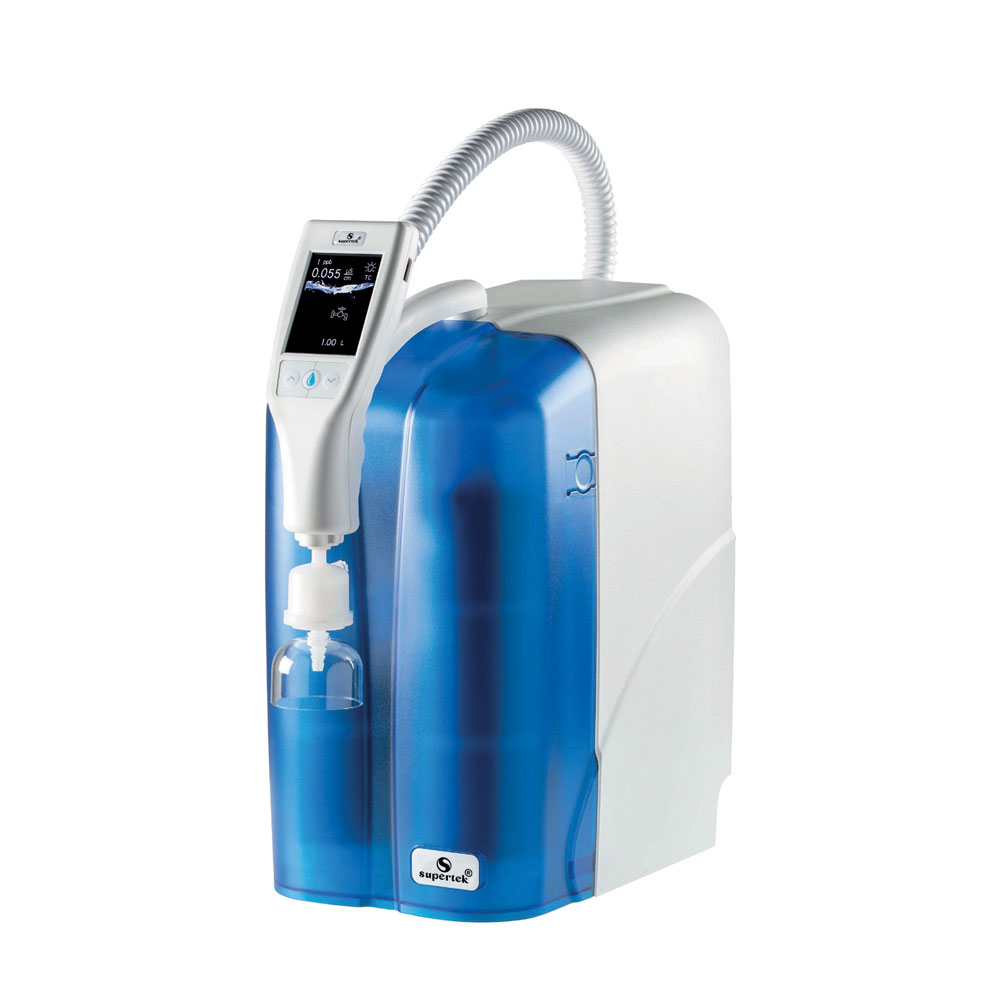

SuperTap TouchIQ
Availability:
In Stock
For H₂O Pure Types I + II
SuperTap TouchIQ is the perfect solution when both Type I (ultrapure) and Type II (pure) water are required in small quantities. It combines advanced ultrafiltration and purification technologies into a single compact system. The unit connects directly to tap water and delivers both water types through a single Super Fill digital dispenser. The 7-liter internal tank continuously recirculates Type II water to preserve its quality, and a pressurized outlet is available for feeding external devices.
Product Features:
Super Fill TouchIQ dispenser for precise volume control
Simple, fast replacement of spent filters
Integrated leakage detection for operational safety
Space-efficient design
Ready-to-use with pre-installed filters
Additional outlet available for feeding downstream instruments or applications
Applications: AAS, IC, ICP buffers and media preparation Ultra-trace analysis, ICP-MS, HPLC, TOC-analysis
Note: For the Accessories & Consumables Please Contact the Sales Representatives.
ST-SIQ
| Cat. No. | System Name | Quantity | |
|---|---|---|---|
| ST-SIQ-02* | SuperTap SlimIQ 8 UV-TOC | ||
| ST-SIQ-03* | SuperTap SlimIQ 8 UV-TOC/UF | ||
| ST-SIQ-02TW*/** | SuperTap SlimIQ 8 Touch +Wall UV-TOC | ||
| ST-SIQ-03TW*/** | SuperTap SlimIQ 8 Touch + Wall UV-TOC/UF | ||
| ST-SIQ-02TB*/** | SuperTap SlimIQ 8 Touch +Bench UV-TOC | ||
| ST-SIQ-03TB*/** | SuperTap SlimIQ 8 Touch + Bench UV-TOC/UF |
Technical Specifications
| Parameter | SuperTap TouchQ 8 UV-TOC | SuperTap TouchQ 8 UV-TOC/UF |
|---|---|---|
| Type II Water (Pure Water) | ||
| Production Capacity @ 15°C (L/h) | 8 | 8 |
| Conductivity at 25°C μS/cm | 0.067-0.1 | 0.067-0.1 |
| Resistivity at 25°C MΩ.cm | 10-15 | 10-15 |
| Type I Water (Ultrapure Water) | ||
| Conductivity at 25°C μS/cm | 0.055 | 0.055 |
| Resistivity at 25°C MΩ.cm | 18.2 | 18.2 |
| TOC ppb | < 2 | < 2 |
| TOC monitor | Yes | Yes |
| Dispensing Rate l/min | Up to 2 | Up to 2 |
| Dispensing Preset Volumes | 0.05 up to 25 | 0.05 up to 25 |
| Bacteria (KBE/ml) | < 0.01 | < 0.01 |
| Particles* > 0.2 μm | < 1 | < 1 |
| Endotoxins / Pyrogens (EU/ml) | < 0.001*** | < 0.001 |
| RNase (ng/mL) | < 0.01*** | < 1 |
| DNase (pg/mL) | < 5*** | < 5 |
| Proteases (µg/mL) | < 0.15*** | < 0.15 |
| General Technical Data | ||
| Feedwater connection | R3/4″ | R3/4″ |
| Electrical connection (Volt/Hz) | 90-240 / 50-60 | 90-240 / 50-60 |
| Connected load [W] | 120 | 120 |
| Ambient temperature [°C] | +2 up to 35 | +2 up to 35 |
| Printer Port | RS232 | RS232 |
| Data Port | USB-A | USB-A |
| Dimensions* (W x H x D mm) | 253 x 530 x 520 | 253 x 530 x 520 |
| Weight (kg) | 19 | 19 |
| Dimensions Super Fill TouchQ wall dispenser (W x H x D mm) | 100 x 520 x 460 | 100 x 580 x 450 |
| Weight Wall dispenser (kg) | 2.4 | 2.4 |
| Dimensions Super Fill TouchQ bench dispenser (W x H x D mm) | 150 x 580 x 450 | 150 x 580 x 450 |
| Weight Bench Dispenser (kg) | 8 | 8 |
| Feed Water Requirements | ||
| Feedwater pressure [bar] | 0.5 up to 6 | 0.5 up to 6 |
| Feedwater temperature [°C] | +2 up to 35 | +2 up to 35 |
| Conductivity @ 25°C [μS/cm] | < 2500 | < 2500 |
| Colloid index SDI | < 12 | < 12 |
| Dissolved O2 (ppm) | < 0.03 | < 0.03 |
| Free chlorine (ppm) | < 0.5 | < 0.5 |
| TOC value [ppb] | < 500 | < 500 |
| Hardness (as CaCO3) | < 300 | < 300 |
| Silica (ppm) | < 30 | < 30 |
| System Name | SuperTap SlimIQ 8 UV-TOC, SuperTap SlimIQ 8 UV-TOC/UF, SuperTap SlimIQ 8 Touch +Wall UV-TOC, SuperTap SlimIQ 8 Touch + Wall UV-TOC/UF, SuperTap SlimIQ 8 Touch +Bench UV-TOC, SuperTap SlimIQ 8 Touch + Bench UV-TOC/UF |
|---|
