water purification system

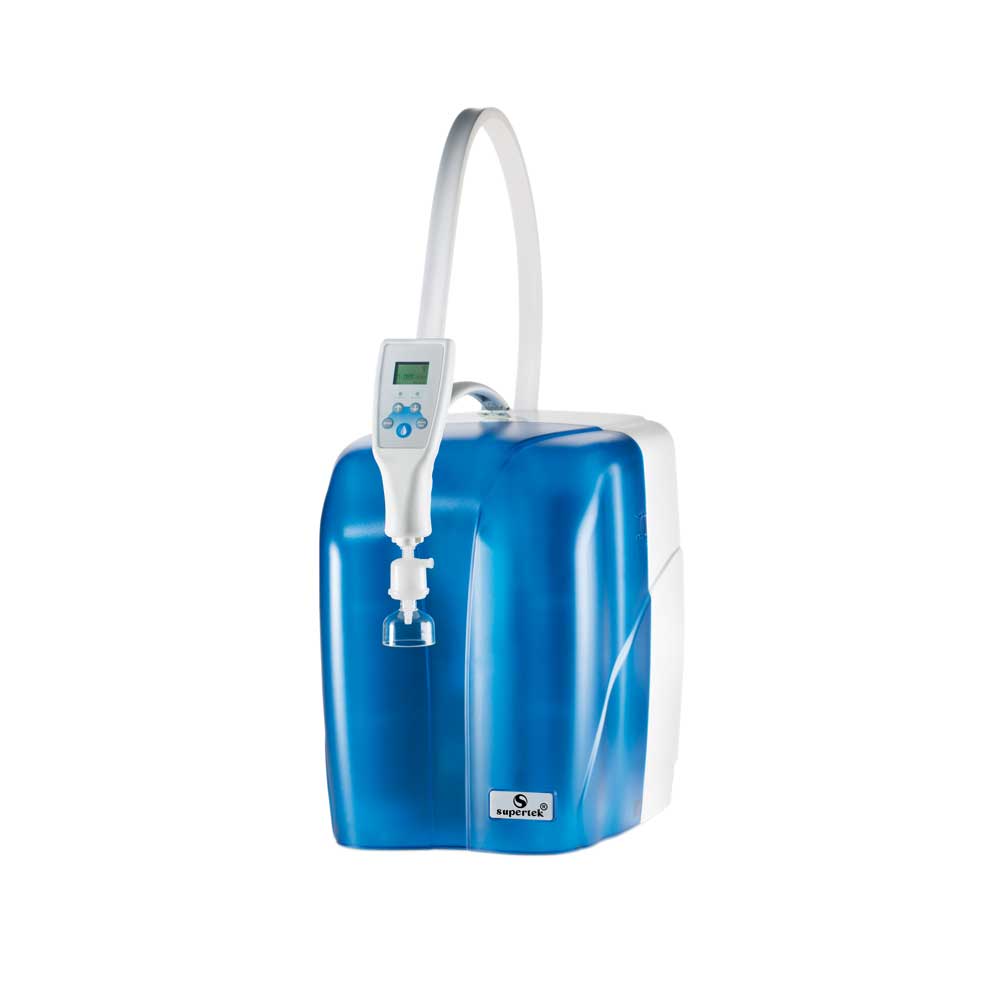

SuperTap II
Availability:
In Stock
For pure H₂O Type ASTM II / CLSI / ISO 3696
The SuperTap II is a compact and versatile Type II water purification system designed for laboratories requiring small-volume, high-purity water on demand. It eliminates the need for separate storage tanks by dispensing freshly purified water directly from the system, delivering consistent ASTM Type II quality.
With its slim, wall-mountable design, ergonomic digital dispenser, and upgradeable performance, Super Tap II combines reliability with flexibility. Continuous recirculation in the 10L tank ensures the water remains within specification, while optional tank sizes support a range of lab needs .
Product Features
Super Fill digital dispenser for accurate volume control.
Direct dispensing of Type II water from the system.
10L tank with continuous recirculation for quality maintenance.
Compact, wall-mountable design with flexible setup.
Optional Tap Water set for direct inlet connection.
Type II water generation in tank up to 20 L/h fully upgradeable from smaller system.
Level sensor to avoid tank contamination.
Built-in leakage sensor for safety.
Tank options: 10L (standard), 30L, 60L, 100L.
Applications: Used in dissolution testing, preparation of media and buffers, rinsing of laboratory glassware, and as feedwater for clinical analysers.
Note: For the Accessories & Consumables Please Contact the Sales Representatives.
ST2
| Cat. No. | System Name | Quantity | |
|---|---|---|---|
| ST2-6-01 | Super Tap TII 6 UV* | ||
| ST2-12-01 | Super Tap TII 12 UV* | ||
| ST2-20-01 | Super Tap TII 20 UV* | ||
| ST2-6-04 | Super Tap TII 6* | ||
| ST2-12-04 | Super Tap TII 12* | ||
| ST2-20-04 | Super Tap TII 20* |
| Technical Specifications | ||
|---|---|---|
| Specification | Super Tap TII | Super Tap TII UV |
| Production Capacity @ 15°C | 6 / 12 / 20 | 6 / 12 / 20 |
| Conductivity µS/cm | 0.067 – 0.1 | 0.067 – 0.1 |
| Resistivity MΩ·cm | 15 – 10 | 15 – 10 |
| TOC ppb | < 30 | < 30 |
| Dispensing Rate l/min | Up to 2 | Up to 2 |
| Pure water Pressurized outlet | Optional | Optional |
| Retention of Bacteria, Particles and Pyrogens by RO Stage | 95 – 99% | 95 – 99% |
| Particles 0.2 µm/ml | No particles > 0.2µm | No particles > 0.2µm |
| Bacterial Content CFU/ml | < 0.01 | < 0.01 |
| UV Photo-Oxidation (254nm) | – | Yes |
| General Technical Data | ||
| Operating Pressure bar | 2 – 6 | 2 – 6 |
| Supply Voltage Volts/Hz | 90 – 240/50–60 | 90 – 240/50–60 |
| Power Consumption kW | 0.1 | 0.1 |
| Water Connections | 8mm | 8mm |
| Ambient Temperature | 2 – 35 | 2 – 35 |
| Dimensions W x H x D mm | 390 X 720 X 615 | 390 X 720 X 615 |
| Weight | 20 | 21 |
| Feedwater Requirements | ||
| Conductivity | < 2500 | < 2500 |
| TOC | < 2000 | < 2000 |
| Chlorine Content | < 5 | < 5 |
| Silt Density / Fouling Index (SDI or FI) | < 12 | < 12 |
| Manganese and Iron content mg/l | < 0.1 | < 0.1 |
| Temperature °C | 2 – 35 | 2 – 35 |
| Hardness | Up to 300 ppm | Up to 300 ppm |
| System Name | Super Tap TII 6 UV*, Super Tap TII 12 UV*, Super Tap TII 20 UV*, Super Tap TII 6*, Super Tap TII 12*, Super Tap TII 20* |
|---|
