water purification system
SuperTap
Availability:
In Stock

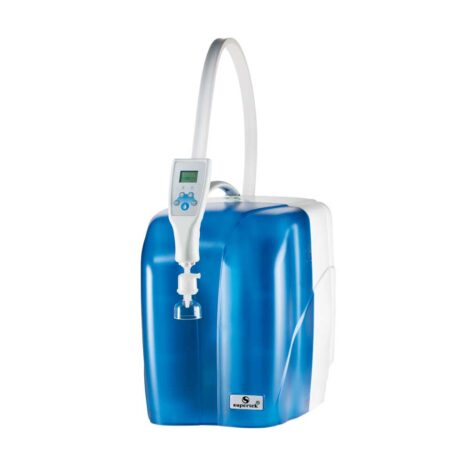

The Supertek Water Purification System is a compact and versatile solution designed to deliver both pure (Type II) and ultrapure (Type I) water from a single unit. Ideal for laboratories requiring small quantities of high-purity water, it integrates ultramodern purification technologies enabling direct tap water connection.
Product Features
Dual output: Ultrapure (Type I) & pure (Type II) water from tap input
Super Fill digital dispenser for precise volume control
Dispensing activated via digital button control
Additional outlet available for feeding downstream instruments or applications
Pre-connected pretreatment set to tap water
Recirculation ensures stable Type II water quality in 10L storage tank
Integrated 185/254 nm UV lamp for TOC reduction & disinfection
RO + activated carbon pretreatment cartridges
Ultra cartridge with mixed-bed resin & activated carbon
Built-in leakage sensor for safety
Supplied with all filters and accessories
Level sensor prevents contamination during withdrawal
Applications
Elemental Analysis AAS, ICP, IS, buffers, media, etc. Organic and Ultra-trace Elemental Analysis HPLC, ICP, IC, LCMSMS, etc. Life Science, Mol Bio, PCR and Organic and Ultra trace Elemental Analysis HPLC, ICP, IC, LCMSMS, etc
Note: For the Accessories & Consumables Please Contact the Sales Representatives.
ST
| Cat. No. | System Name | Quantity | |
|---|---|---|---|
| ST-12-02 | SuperTap 12 UV-TOC* | ||
| ST-12-03 | SuperTap 12 UV-TOC/UF* | ||
| ST-12-04 | SuperTap 12* | ||
| ST-20-02 | SuperTap 20 UV-TOC* | ||
| ST-20-03 | SuperTap 20 UV-TOC/UF* | ||
| ST-20-04 | SuperTap 20* |
| Technical Specifications | |||
|---|---|---|---|
| Specification | Super Tap | Super Tap UV | Super Tap UV/UF |
| Type II Water | |||
| Generation Performance @15°C | 12/20 | 12/20 | 12/20 |
| Conductivity (µS/cm) | 0.067-0.1 | 0.067-0.1 | 0.067-0.1 |
| Resistivity (MΩ·cm) | 15-10 | 15-10 | 15-10 |
| TOC (ppb) | < 30 | < 30 | < 30 |
| Pure Water Pressurized outlet | Optional | Optional | Optional |
| Retention of Bacteria, Particles & Pyrogens by RO stage | 95-99% | 95-99% | 95-99% |
| Type I Water | |||
| Conductivity µS/cm | 0.055 | 0.055 | 0.055 |
| Resistivity MΩ·cm | 18.2 | 18.2 | 18.2 |
| TOC ppb | 5 – 10 | 1 – 5 | 1 – 5 |
| Dispensing Rate L/min | Up to 2 | Up to 2 | Up to 2 |
| Endotoxins / Pyrogens EU/ml | 0.001** | 0.001** | 0.001 |
| Particles ≥ 0.2 µm/ml | No particles ≥ 0.2µm | No particles ≥ 0.2µm | No particles ≥ 0.2µm |
| Bacterial Content CFU/ml | < 0.01 | < 0.01 | < 0.01 |
| RNase ng/mL | < 1** | < 1** | < 1 |
| DNase pg/mL | < 5** | < 5** | < 5 |
| Proteases /mL | < 0.15** | < 0.15** | < 0.15 |
| General Technical Data | |||
| Operating Pressure | 2 – 6/2 – 6 | 2 – 6 | 2 – 6 |
| Supply Voltage | 90 – 240V, 50/60 Hz | 90 – 240/50-60 | 90 – 240/50-60 |
| Power Consumption | 0.1 | 0.1 | 0.1 |
| Water Connections | 8 mm | 8 mm | 8 mm |
| Ambient Temperature °C | 2 – 35 | 2 – 35 | 2 – 35 |
| Dimensions (W × H × D) mm | 390 × 720 × 615 | 390 × 720 × 615 | 390 × 720 × 615 |
| Weight | 20 | 21 | 21 |
| Feedwater Requirements | |||
| Conductivity µS/cm | < 2500 | < 2500 | < 2500 |
| TOC ppb | < 500 | < 500 | < 500 |
| Chlorine Content mg/L | < 1 | < 1 | < 1 |
| Silica Density / Fouling Index (SDI / FI) | < 2 | < 2 | < 2 |
| Manganese / Iron mg/L | < 0.05 | < 0.1 | < 0.1 |
| Temperature °C | 2 – 35 | 2 – 35 | 2 – 35 |
| Hardness ppm | Up to 300 | Up to 300 | Up to 300 |
| System Name | SuperTap 12 UV-TOC*, SuperTap 12 UV-TOC/UF*, SuperTap 12*, SuperTap 20 UV-TOC*, SuperTap 20 UV-TOC/UF*, SuperTap 20* |
|---|
