SuperLabᵁᴾ
,

SuperLabᵁᴾ

Availability:

In Stock

For pure H₂O Type ASTM II / CLRW (CLSI) / ISO 3696

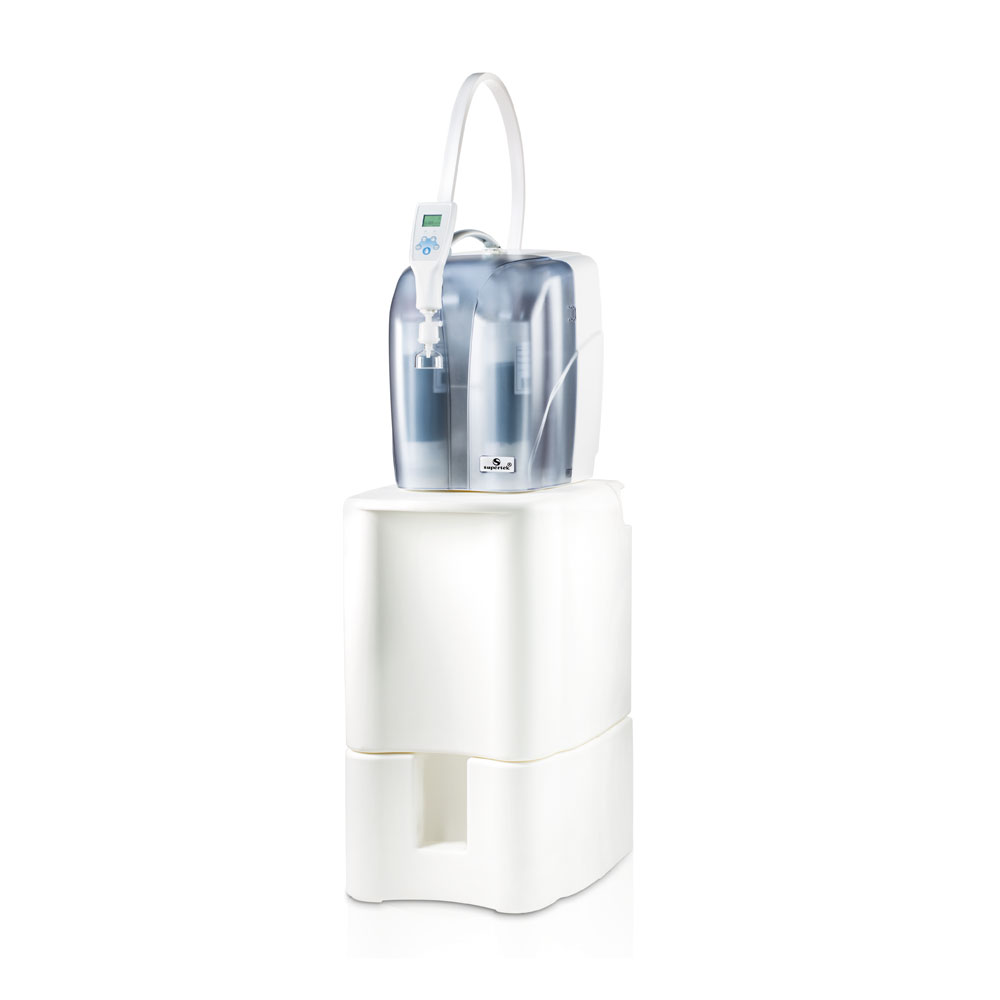

The SuperLabᴸᵁᴾ is a high-capacity Type II water purification system engineered for continuous, reliable performance in laboratory environments. It delivers up to 40 L/h of ASTM II / CLRW-grade water with a consistent 2 L/min dispensing rate. With up to 100 litres of recirculated storage, it’s ideal for autoclaves, clinical analysers, and scientific applications requiring pressurized output. Designed for flexibility, SuperLabᴸᵁᴾ can be installed on a tower, under a bench, or on mobile castors to save space.

Product Features

  • Super Fill digital dispenser for precise volume control

  • Dual cartridge design for stable, long-term Type II output

  • UV-sterilized 100L tank with internal recirculation

  • Space-saving installation: tower, mobile, or under-bench

  • Dispensing rate: up to 2 L/min

  • Generation capacity: up to 40 L/h (Type II)

  • Microbial control is achieved via interval-based recirculation and/or integrated UV treatment

  • Built-in leakage sensor for safety

  • Non-contact level sensor keeps stored water clean and fresh

Applications: Super Lab UP 20Used in dissolution testing, preparation of media and buffers, rinsing of laboratory glassware, and as feedwater for clinical analysers.

Note: For the Accessories & Consumables Please Contact the Sales Representatives.

SL-UP

Cat. No.System NameQuantity
SL-UP-20Super Labᵁᴾ 20
SL-UP-40Super Labᵁᴾ 40

Technical Specifications

ParameterSuperLabUP 20SuperLabUP 40
Production capacity at 15°C2020
Conductivity µS/cm0.067 – 0.10.067 – 0.1
Resistivity MΩ·cm15 – 1015 – 10
TOC ppb< 30< 30
Pure water outlet typeStandardStandard
Retention of bacteria, Particles & Pyrogens %95 – 99%95 – 99%
Particles ≥ 0.2 µmNo particles ≥ 0.2 µmNo particles ≥ 0.2 µm
Bacterial Content CFU/ml< 0.01< 0.01
UV Photo-Oxidation (254nm)OptionalOptional
General Technical Data
Operating Pressure bar2 – 62 – 6
Supply Voltage Volts/Hz90 – 240 / 50–6090 – 240 / 50–60
Power Consumption kW0.10.1
Water Connections8mm8mm
Ambient Temperature2 – 352 – 35
Dimensions W x H x D mm511 x 1520 x 575511 x 1520 x 575
Weight4040
Feedwater Requirements
Conductivity< 2500< 2500
TOC< 2000< 2000
Chlorine Content< 5< 5
Silt Density / Fouling Index (SDI or FI)< 12< 12
Manganese and Iron content mg/l< 0.1< 0.1
Temperature °C2 – 352 – 35
HardnessUp to 300 ppmUp to 300 ppm



Cat. No.: SL-UP Categories: ,
System Name

Super Labᵁᴾ 20, Super Labᵁᴾ 40
