water purification system

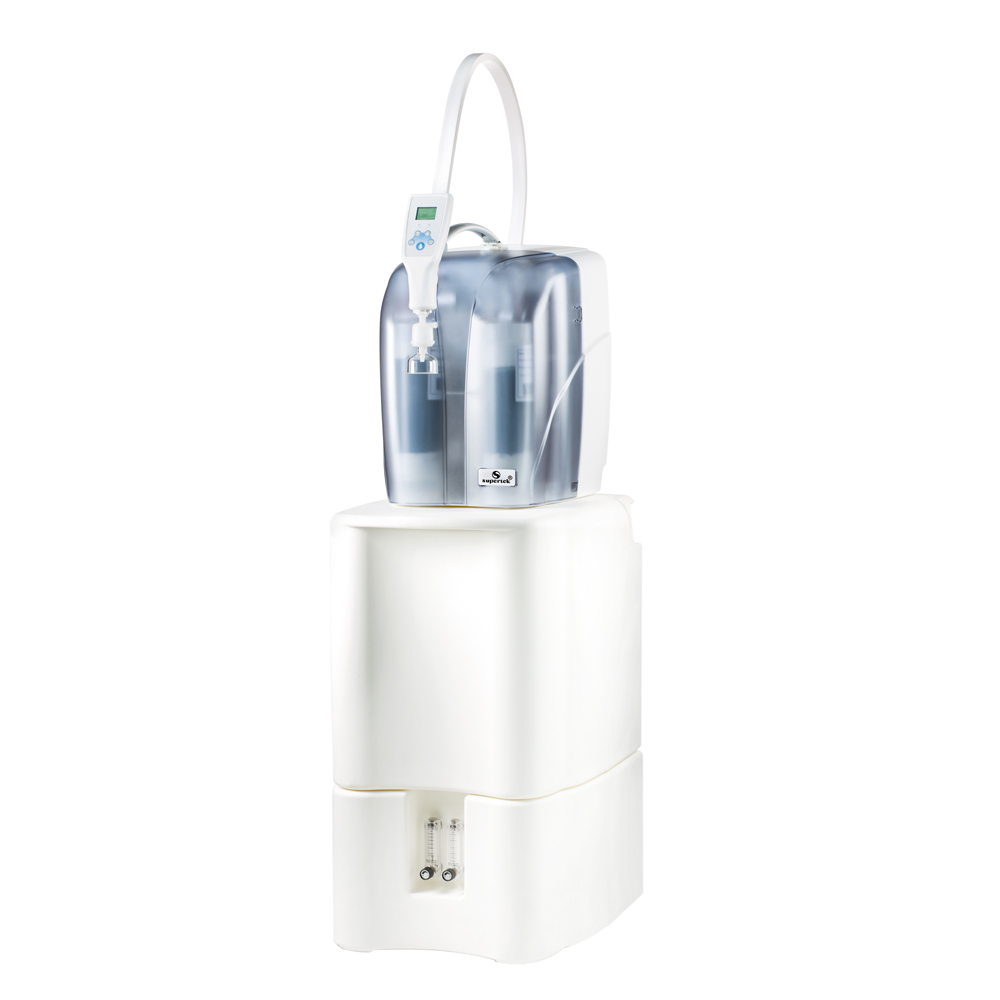

SuperLabᴱᴰ+
Availability:
In Stock
The high-capacity system. For Type I + Type II Pure Water
SuperLab® is designed for laboratories requiring both ultrapure (Type I) and pure (Type II) water from a single system. It meets the most stringent international water standards (ASTM, ISO 3696, CLSI, and CLRW) and provides exceptional performance through continuously self-regenerating electro-deionization, without compromising demanding analytical or clinical workflows.
This all-in-one system includes an integrated 100-liter storage tank with recirculation and pressure output, making it ideal for autoclaves, glassware washers, ultrapure instruments, and more. Intelligent tank management, high throughput, and compatibility with external ultrapure units ensure that SuperLab® meets even the most demanding water supply requirements.
Product Features:
Super Fill Dispenser as standard
Continuous electro-deionization with no regeneration downtime
100 L tank with recirculation and pressure outlet
Compatible with ultrapure systems (e.g., Super Pure) via programmable tank volume and timing control
Fully enclosed design with low footprint
Energy-efficient and cost-effective operation
Integrated leakage detection system
Consistent water quality ensured via UV sterilization and internal circulation
Flexible installation: bench-top or under-table
Water quality standards:
Type II: ASTM ≥ 1 MΩ·cm, up to 2 L/min
Type I: ASTM ≥ 18 MΩ·cm, up to 70 L/h
Expandable: add another 100 L tank for increased capacity
Hygienic outlet with self-sealing nozzle and automatic rinse
Applications: Used in dissolution testing, preparation of media and buffers, rinsing of laboratory glassware, and as feedwater for clinical analysers
Note: For the Accessories & Consumables Please Contact the Sales Representatives
SL-EDP
| Cat. No. | System Name | Quantity | |
|---|---|---|---|
| SL-EDP20-04 | Super Labᴱᴰ⁺ 20 | ||
| SL-EDP20-02 | Super Labᴱᴰ⁺ 20 UV-TOC | ||
| SL-EDP40-04 | Super Labᴱᴰ⁺ 40 | ||
| SL-EDP40-02 | Super Labᴱᴰ⁺ 40 UV-TOC |
Technical Specifications
| Parameter | SuperLab® 20 / SuperLab® 20 UV-TOC | SuperLab® 40 / SuperLab® 40 UV-TOC |
|---|---|---|
| Type II Water, CLRW (CLSI) Grade Water | ||
| Production capacity at 15°C | 20 | 40 |
| Conductivity µS/cm | < 0.1 | < 0.1 |
| Resistivity MΩ·cm | > 10 | > 10 |
| TOC ppb | < 30 | < 30 |
| Pure water outlet type | Standard | Standard |
| Retention of bacteria, Particles & Pyrogens % | 95 – 99% | 95 – 99% |
| Particles ≥ 0.2 µm | No particles ≥ 0.2 µm | No particles ≥ 0.2 µm |
| Bacterial Content CFU/ml | < 0.01 | < 0.01 |
| UV Photo-Oxidation (254nm) | Optional | Optional |
| Type I Water | ||
| Conductivity < µS/cm | 0.055 | 0.055 |
| Resistivity MΩ·cm | 15–10 | 15–10 |
| TOC ppb | 1–5 | 1–5 |
| Dispensing Rate l/min | Up to 2 | Up to 2 |
| Bacterial Content CFU/mm | 0.01 | 0.01 |
| General Technical Data | ||
| Operating Pressure bar | 2 – 6 | 2 – 6 |
| Supply Voltage Volts/Hz | 90 – 240 / 50–60 | 90 – 240 / 50–60 |
| Power Consumption kW | 0.1 | 0.1 |
| Water Connections | 8 mm | 8 mm |
| Ambient Temperature | 2 – 35 | 2 – 35 |
| Dimensions W x H x D mm | 511 x 1520 x 575 | 511 x 1520 x 575 |
| Weight | 41 | 41 |
| Feedwater Requirements | ||
| Conductivity | < 2500 | < 2500 |
| TOC | < 2000 | < 2000 |
| Chlorine Content | < 5 | < 5 |
| Silt Density / Fouling Index (SDI or FI) | < 12 | < 12 |
| Manganese and Iron content mg/l | < 0.1 | < 0.1 |
| Temperature °C | 2 – 35 | 2 – 35 |
| Hardness | Up to 300 ppm | Up to 300 ppm |
| System Name | Super Labᴱᴰ⁺ 20, Super Labᴱᴰ⁺ 20 UV-TOC, Super Labᴱᴰ⁺ 40, Super Labᴱᴰ⁺ 40 UV-TOC |
|---|
