Centrifuge

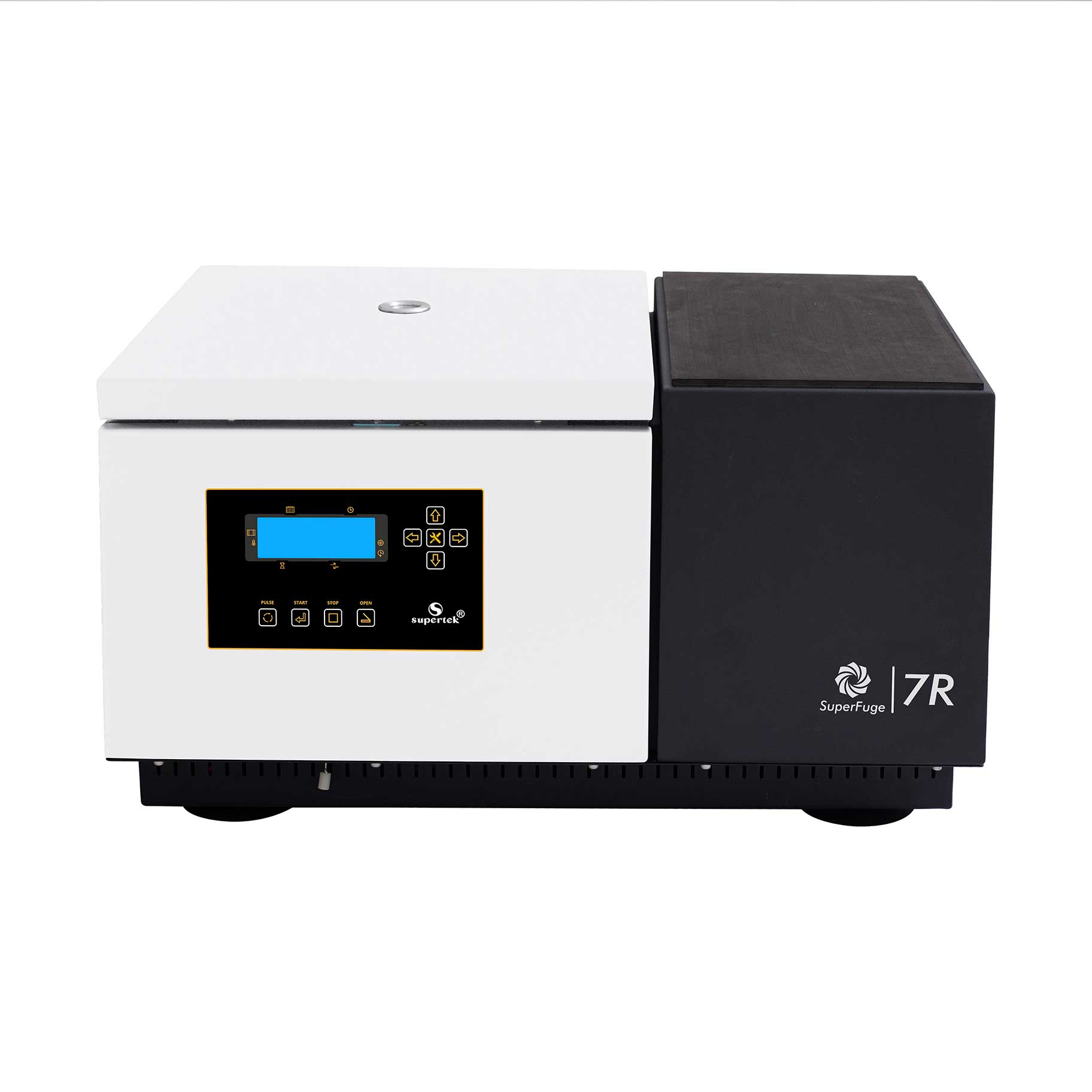

SuperFuge 7R/7V
Availability:
In Stock
The SuperFuge 7V/7R centrifuges are top-tier, high-volume centrifugation systems capable of processing up to 3 L per run in swing-out rotors and 2 L in fixed-angle rotors. Designed for highthroughput labs, they offer enhanced performance with user-focused controls and a broad rotor range for diverse applications including microbiology, cell culture, food processing, and
molecular biology.
Applications:
- Clinical & Research Applications: Cell harvesting in cell culture, Protein isolation and purification, Molecular biology, PCR sample preparation, PBMC isolation, Genomics
- Industrial & Applied Sciences: Fermentation applications, Ultrafiltration, Food technology.
SF-7
| Cat. No. | Category | Descrption | Quantity | |
|---|---|---|---|---|
| SF-7R | Centrifuge | SuperFuge 7R | ||
| SF-7V | Centrifuge | SuperFuge 7V | ||
| A24-4X500 | Rotors | 4 × 500 mL | ||
| A26-6X250 | Rotors | 6 × 250 mL | ||
| A26-8X50 | Rotors | 8 x 50 mL | ||
| A30-12X30 | Rotors | 12 x 30 mL | ||
| A30-20x10 | Rotors | 20 x 10 mL | ||
| A30-6x100 | Rotors | 6 × 100 mL | ||
| A34-14X50 | Rotors | 14 × 50 mL | ||
| A36-6X85 | Rotors | 6 x 85 mL | ||
| A40-12X15 | Rotors | 12 x 15 mL | ||
| A45-24X5 | Rotors | 24 x 5 mL | ||
| A45-40X15 | Rotors | 40 × 15 mL | ||
| A45-48X1.5 | Rotors | 48 x 1.5 mL | ||
| A45-6X50 | Rotors | 6 x 50 mL | ||
| A45-96X0.2 | Rotors | 96 x 0.2 mL | ||
| SW90-2X4 | Rotors | 2 x 4 ml | ||
| SW90-4X250 | Rotors | 4 x 250 mL | ||
| SW90-4X4 | Rotors | 4 x 4 ml | ||
| SW90-4X500 | Rotors | 4 x 500 mL | ||
| SW90-4X750 | Rotors | 4 x 750 mL |
- Heavy duty and high-capacity centrifuge machine: Capacities ranging up to 4 × 750 mL
- High RPM & RCF Output: Making it ideal for fine particle separation, nucleic acid preparation, and more.
- Combines micro and multi-purpose centrifuge functionality
- Features Brushless Induction Motor.
- Supports multiple rotors (Not included). Accommodates both swing-out and fixed-angle rotors.
- Automatic rotor recognition ensures accurate RCF calculation and safe operation.
- Available with refrigeration option.
- Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
- Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges,
Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard Ring,
Error Detection System. - Intuitive user interface with bright digital display.
- Features programmable timer up to 99 hours, 59 minutes, and 59 seconds.
- Store up to 99 user-defined programs for fast setup and repeatable applications.
- Multiple acceleration and braking profiles options.
- Eco Mode for saving energy during standby.
- Low operating noise levels.
- CE Certified
| Technical Specifications | ||
|---|---|---|
| Specification | SuperFuge 7R | SuperFuge 7V |
| Catalogue No. | SF-7R | SF-7V |
| Max. Capacity (Swing-out) | 3000 mL (4 × 750 mL) | 3000 mL (4 × 750 mL) |
| Max. Capacity (Fixed-angle) | 2000 mL (4 × 500 mL) | 2000 mL (4 × 500 mL) |
| Max. Speed | 14,000 RPM | 13,000 RPM |
| Max. RCF | 25,901 × g | 21,734 × g |
| Acceleration/Braking Time Swing-out Rotor | 25 s / 25 s | 25 s / 25 s |
| Acceleration/Braking Time Fixed Angle Rotor | 20 s / 20 s | 20 s / 20 s |
| Noise Level | <56 dB A | <56 dB A |
| Temperature Range | -20°C to +40°C | Ambient to +40°C |
| Temperature Accuracy | ±1°C (on calibrated rotor) | — |
| Refrigerant | R134a (CFC Free) | Not Applicable |
| Dimensions (H × W × D) | 565 × 877 × 710 mm | 565 × 600 × 710 mm |
| Height with Lid Open | 1115 mm | 1115 mm |
| Weight (without rotor) | 124 kg | 90 kg |
| Power Consumption | 1.7 kW | 1.3 kW |
Rotors
| Part No. | Description | Rotor Angle | RPM Ref. | RCF Ref. | RPM Non-Ref | RCF Non-Ref |
|---|---|---|---|---|---|---|
| A24-4X500 | 4 × 500 mL | 24° | 8000 | 10,876 × g | 7000 | 8,327 × g |
| A26-6X250 | 6 × 250 mL | 26° | 9000 | 14,057 × g | 8000 | 9,946 × g |
| A26-8X50 | 8 × 50 mL | 26° | 11000 | 13,926 × g | 10000 | 11,963 × g |
| A30-12X30 | 12 × 30 mL | 30° | 12000 | 19,194 × g | 11000 | 15,692 × g |
| A30-20X10 | 20 × 10 mL | 30° | 13000 | 17,109 × g | 12000 | 15,777 × g |
| A30-6X100 | 6 × 100 mL | 30° | 11000 | 15,422 × g | 10000 | 12,745 × g |
| A34-14X50 | 14 × 50 mL | 34° | 11000 | 12,717 × g | 8000 | 11,019 × g |
| A36-6X85 | 6 × 85 mL | 36° | 12000 | 15,514 × g | 10000 | 12,857 × g |
| A40-12X15 | 12 × 15 mL | 40° | 13000 | 23,791 × g | 11000 | 16,774 × g |
| A45-2X5 | 2 × 5 mL | 45° | 13100 | 25,901 × g | 12000 | 21,734 × g |
| A45-40X15 | 40 × 15 mL | 45° | 5500 | 5,310 × g | 5500 | 5,310 × g |
| A45-48X1.5 | 48 × 1.5 mL | 45° | 13000 | 18,516 × g | 13000 | 18,516 × g |
| A45-6X50 | 6 × 50 mL | 45° | 12100 | 20,133 × g | 11000 | 16,639 × g |
| A45-96X0.2 | 96 × 0.2 mL | 45° | 12000 | 14,489 × g | 12000 | 14,489 × g |
| SW90-2X4 | 2 × 4 MTP | 90° | 3700 | 2,189 × g | 3700 | 2,189 × g |
| SW90-4X250 | 4 × 250 mL | 90° | 4500 | 4,302 × g | 4500 | 4,302 × g |
| SW90-4X4 | 4 × 4 mL | 90° | 3000 | 1,841 × g | 3000 | 1,841 × g |
| SW90-4X500 | 4 × 500 mL | 90° | 4500 | 4,369 × g | 4500 | 4,369 × g |
| SW90-4X750 | 4 × 750 mL | 90° | 4500 | 4,415 × g | 4500 | 4,369 × g |
*A – Angle Rotor, AL – Angle Rotor with Lid, SW – Swing Out Rotor
*Rotors are available in pack of 1
