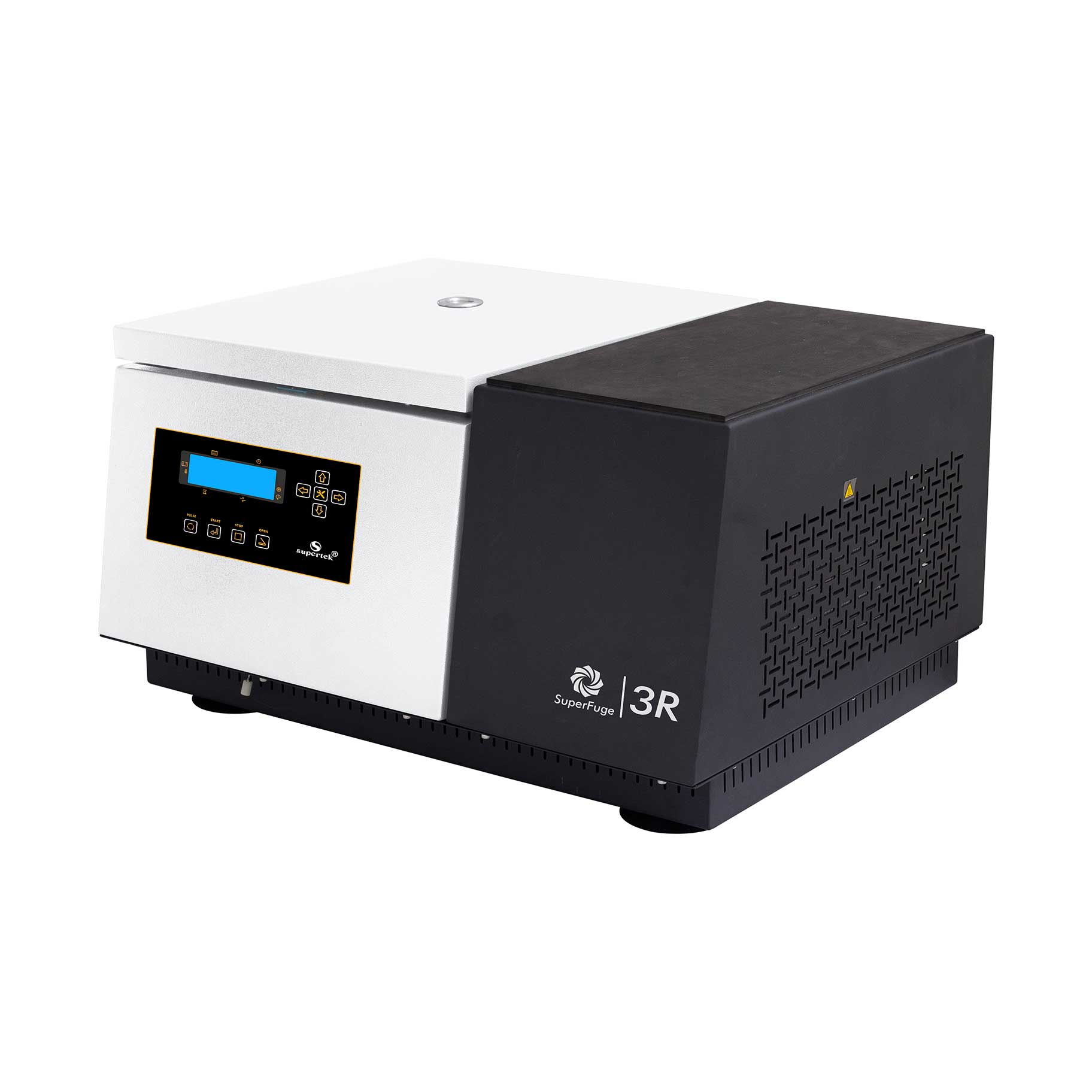

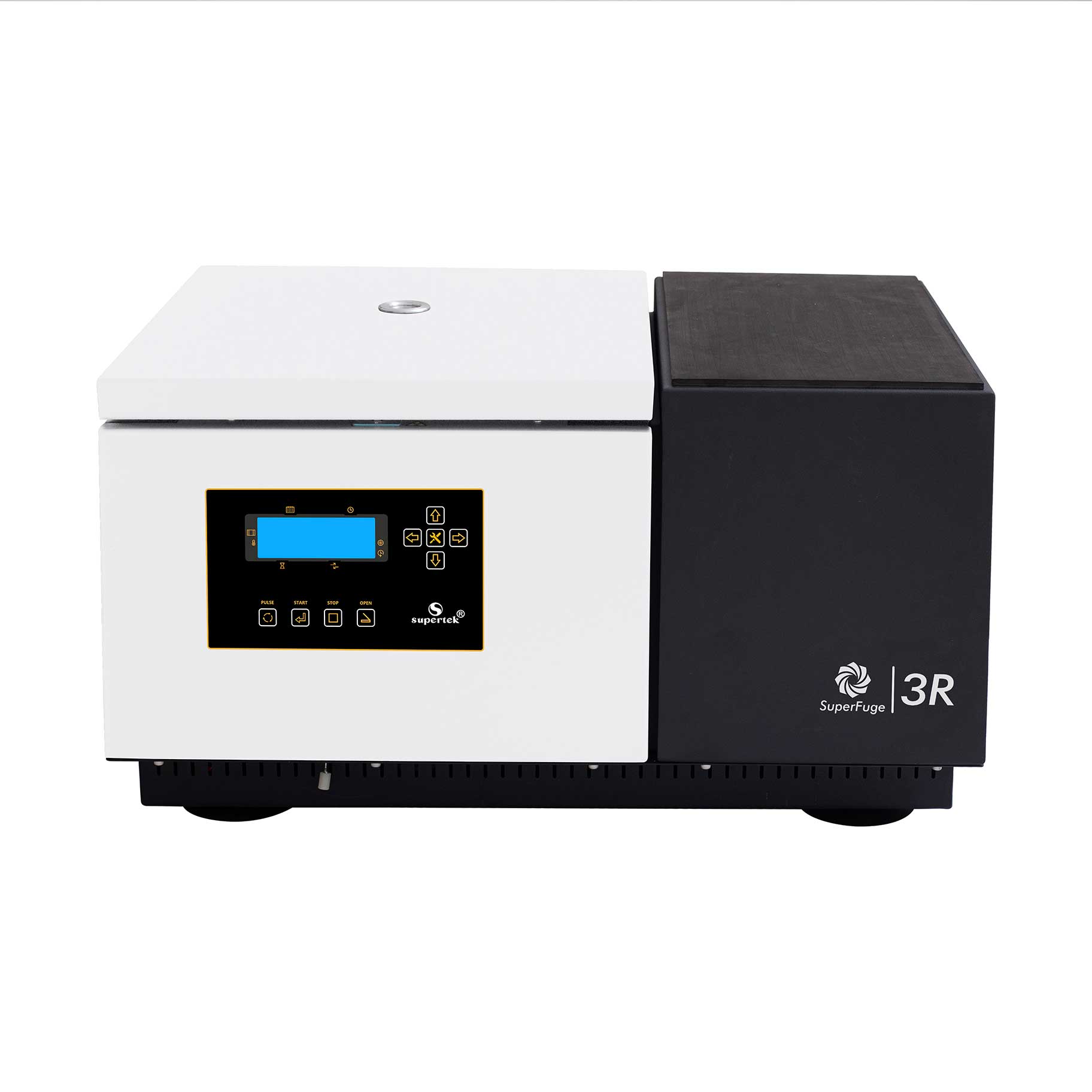

SuperFuge 3R/3V

Availability:

In Stock

The SuperFuge 3R/3V are multi-purpose centrifuge machines that combine the versatility of micro and benchtop centrifugation into a single, compact design. These machines support broad
range of rotors for a variety of tube sizes, delivering precise and powerful separation for clinical, research, and industrial applications.

Applications:

Clinical & Research Applications: Cell harvesting, PBMC isolation, Molecular biology workflows, PCR preparation, Protein purification.
Industrial & Applied Sciences: Ultrafiltration, Food technology .

SF-3

Cat. No.	Category	Description
SF-3R	Centrifuge	SuperFuge 3R
SF-3V	Centrifuge	SuperFuge 3V
A26-4x50	Rotor	4 × 50 mL
A26-6x30	Rotor	6 × 30 mL
A30-20x5	Rotor	20 × 5 mL
A30-4x30	Rotor	4 × 30 mL
A36-10x8	Rotor	10 × 8 mL
A45-24x1.5	Rotor	24 × 1.5 mL
AL45-24x1.5	Rotor	24 × 1.5 mL
AL45-32x0.2	Rotor	32 × 0.2 ml PCR
SW90-10x1.5	Rotor	10 × 1.5 mL

Heavy duty and high-capacity centrifuge machine: Capacities ranging up to 4 × 50 mL
High RPM & RCF Output: Making it ideal for fine particle separation, nucleic acid preparation, and more.
Features Brushless Induction Motor.
Supports multiple rotors (Not included). Accommodates both swing-out and fixed-angle rotors.
Automatic rotor recognition ensures accurate RCF calculation and safe operation.
Available with refrigeration option.
Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges,
Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard Ring, Error Detection System.
Intuitive user interface with bright digital display.
Features programmable timer up to 99 hours, 59 minutes, and 59 seconds.
Store up to 99 user-defined programs for fast setup and repeatable applications.
Multiple acceleration and braking profiles options.
Eco Mode for saving energy during standby.
Low operating noise levels.
CE Certified

Cat. No.: SF-3 Category: Centrifuge

Technical Specifications
Specification	SuperFuge 3R	SuperFuge 3V
Catalogue No.	SF-3R	SF-3V
Max. Capacity (Swing-out)	15 mL (10×1.5 mL)	15 mL (10×1.5 mL)
Max. Capacity (Fixed-angle)	200 mL (4×50 mL)	200 mL (4×50 mL)
Max. Speed	20,000 RPM	17,500 RPM
Max. RCF	32,198 × g	24,652 × g
Acceleration/Braking Time Swing-out Rotor	25 s / 25 s	25 s / 25 s
Acceleration/Braking Time Fixed Angle Rotor	20 s / 20 s	20 s / 20 s
Noise Level	<58 dB A	<58 dB A
Temperature Range	-10°C to +40°C	Ambient to +40°C
Refrigerant	R134a (CFC Free)	Not Applicable
Dimensions (H×W×D)	425 × 692 × 540 mm	425 × 415 × 540 mm
Height with Lid Open	839 mm	839 mm
Weight (without rotor)	70 kg	40 kg
Power Consumption	750 W	500 W
Input Power	220–230 V AC, 50–60 Hz	220–230 V AC, 50–60 Hz

Rotors

Part No.	Category	Description	Rotor Angle	RPM Ref.	RCF Ref.	RPM Non-Ref.	RCF Non-Ref.
A26–4×50	Rotor	4 × 50 mL	26°	10,000	10,062 × g	10,000	10,062 × g
A26–6×30	Rotor	6 × 30 mL	26°	11,000	11,093 × g	10,000	9,168 × g
A30–20×5	Rotor	20 × 5 mL	30°	16,000	20,035 × g	14,000	15,339 × g
A30–4×30	Rotor	4 × 30 mL	30°	16,000	21,179 × g	14,000	16,215 × g
A36–10×8	Rotor	10 × 8 mL	36°	16,000	22,324 × g	14,000	17,092 × g
A45–24×1.5	Rotor	24 × 1.5 mL	45°	20,000	32,198 × g	17,500	24,652 × g
AL45–24×1.5	Rotor	24 × 1.5 mL	45°	17,500	29,103 × g	15,000	21,382 × g
AL45–32×0.2	Rotor	32 × 0.2 mL PCR	45°	15,000	15,345 × g	15,000	15,345 × g
SW90–10×1.5	Rotor	10 × 1.5 mL	90°	10,000	9,391 × g	8,000	6,010 × g

*A – Angle Rotor, AL – Angle Rotor with Lid, SW – Swing Out Rotor
*Rotors are available in pack of 1
