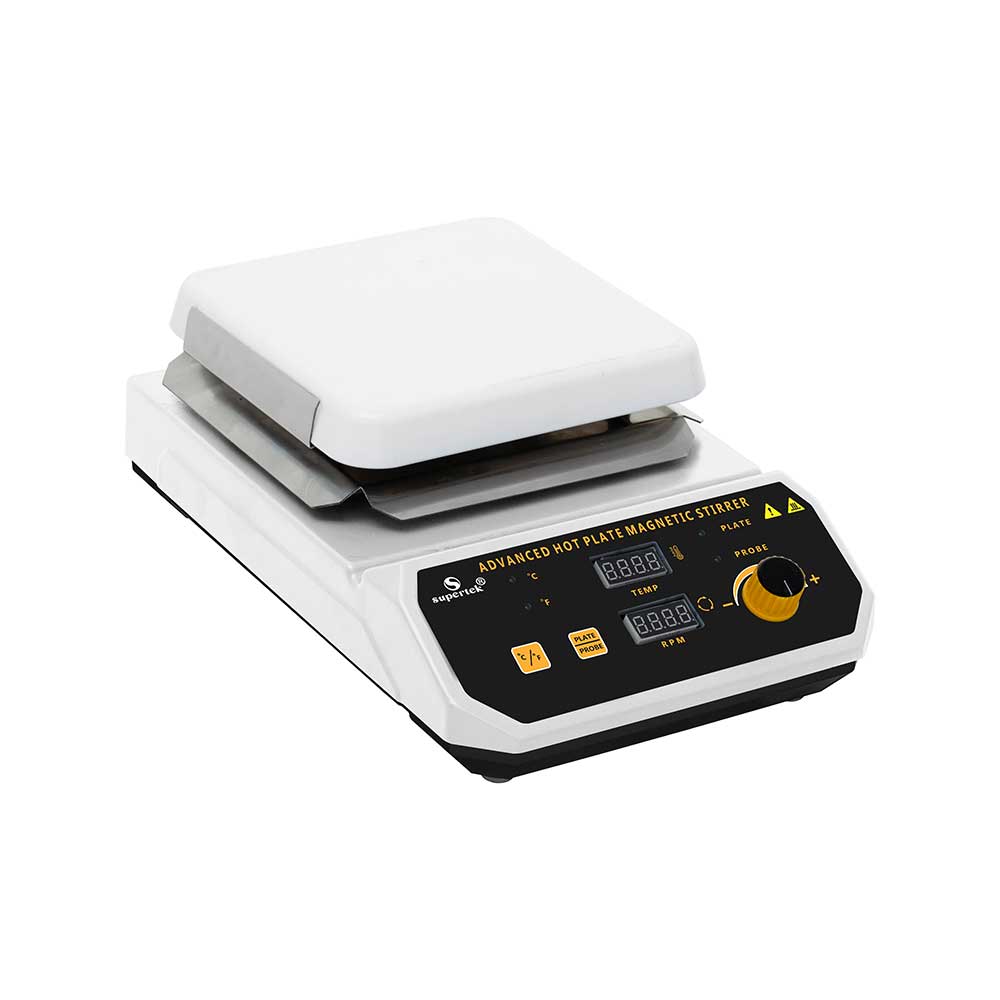

Hot Plate Magnetic Stirrer, Advanced


This advanced hot plate magnetic stirrer is designed to provide reliable performance, dependable safety and precise control. The high density glass ceramic top plate offers excellent chemical resistance against strong acids and bases. PID temperature technology controls heating process ensuring that target temperature is reached quickly and accuracy is enhanced. It also has excellent speed control upto 1500 rpm, giving you gentle and precise control of the stirring speed. The body is made with heat-resistant and anti-corrosion die-cast aluminum body and finished with a high quality powder coating.
Technical Specifications:

  • Top Plate: Chemical resistant glass ceramic plate
  • Top Plate Dimensions: 180 x 180mm
  • Max. Capacity: 5 L
  • Temperature Range: RT – 520°C
  • Hot plate indication
  • Selection of hot plate temperature and external probe temperature.
  • Selection of temperature in  °C and  °F.
  • Heat Output: 800 W
  • Stirring Range: Upto 1500 rpm
  • Independent display for RPM and Temperature.
  • Error code display for any kind of failure.
  • Includes stirring bar, support rods, clamps and external probe.
  • Dimensions:360 x 230 x 135 mm
  • Weight: 5.5 Kg

CH12395H/2G

Catalog No. Max capacity Top plate Max temp c Max stirring speed rpm Input rating Pack size Quantity
No. of Packs
Add To Enquiry
CH12395H/2G 5L Glass Ceramic 520 1500 220V AC / 50 Hz 1
Max. Capacity

5L

Top Plate

Glass Ceramic

Max.Temp (°C)

520

Max. Stirring Speed (RPM)

1500

Input Rating

220V AC / 50 Hz

Pack Size

1
