Heating & Tempering
Heating Mantles, Digital
Availability:
In Stock

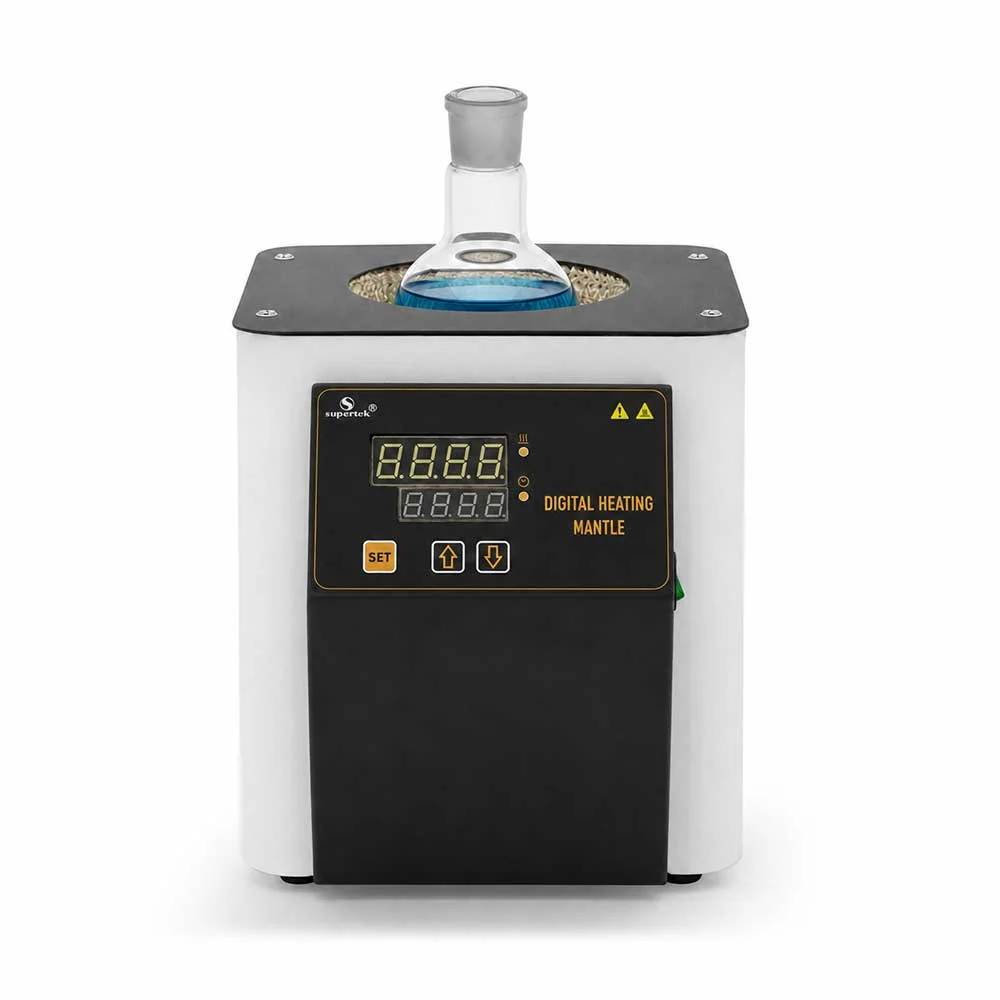

Heating mantles are used to uniformly heat liquids placed in round bottom flasks. Insert the external probe in the liquid solution and measure/control the temperature of the liquid directly with these highly accurate digital heating mantles. It is supplied with a robust MS (mild steel) rectangular body across the complete range.
Product Features:
- With non-slip rubber feet
- Temperature probe PT100
- For use with round bottom flasks
- Includes support rods and boss head
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Measure and control the temperature of liquid directly
- Outer body is made from powder-coated MS (mild steel), rectangular construction
- Glass fibre yarn knitted heating element provides uniform heating to the flask
Technical Specifications:
- CE Marked/CE Compliant
- Overload protection
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Temperature accuracy ± 0.5°C, Resolution 0.1°C
- Temperature range of PT100: Ambient + 5°C to 250°C
- Temperature range of heating surface: Ambient + 5°C to 400°C
- Timer: Up to 9999 mins
- IP Rating: IP20
Note: Heating element cording may be slightly brown in colour due to QC testing.
HMRT
| Cat. No. | Flask Capacity, ml | Power, W | Pack Size | Quantity | |
|---|---|---|---|---|---|
| HMRT-D-50 | 50 | 60 | 1 | ||
| HMRT-D-100 | 100 | 60 | 1 | ||
| HMRT-D-250 | 250 | 150 | 1 | ||
| HMRT-D-500 | 500 | 200 | 1 | ||
| HMRT-D-1L | 1000 | 300 | 1 | ||
| HMRT-D-2L | 2000 | 450 | 1 | ||
| HMRT-D-3L | 3000 | 450 | 1 | ||
| HMRT-D-5L | 5000 | 600 | 1 | ||
| HMRT-D-10L | 10000 | 1200 | 1 |
Scope of Supply
- Main unit
- Instruction Manual
- Power cord
- Support rod
- Boss head
- Probe clamp
- PT100 temperature probe
| Flask Capacity, ml | 50, 100, 250, 500, 1000, 2000, 3000, 5000, 10000 |
|---|---|
| Power, W | 60, 150, 200, 300, 450, 600, 1200 |
| Pack Size | 1 |
