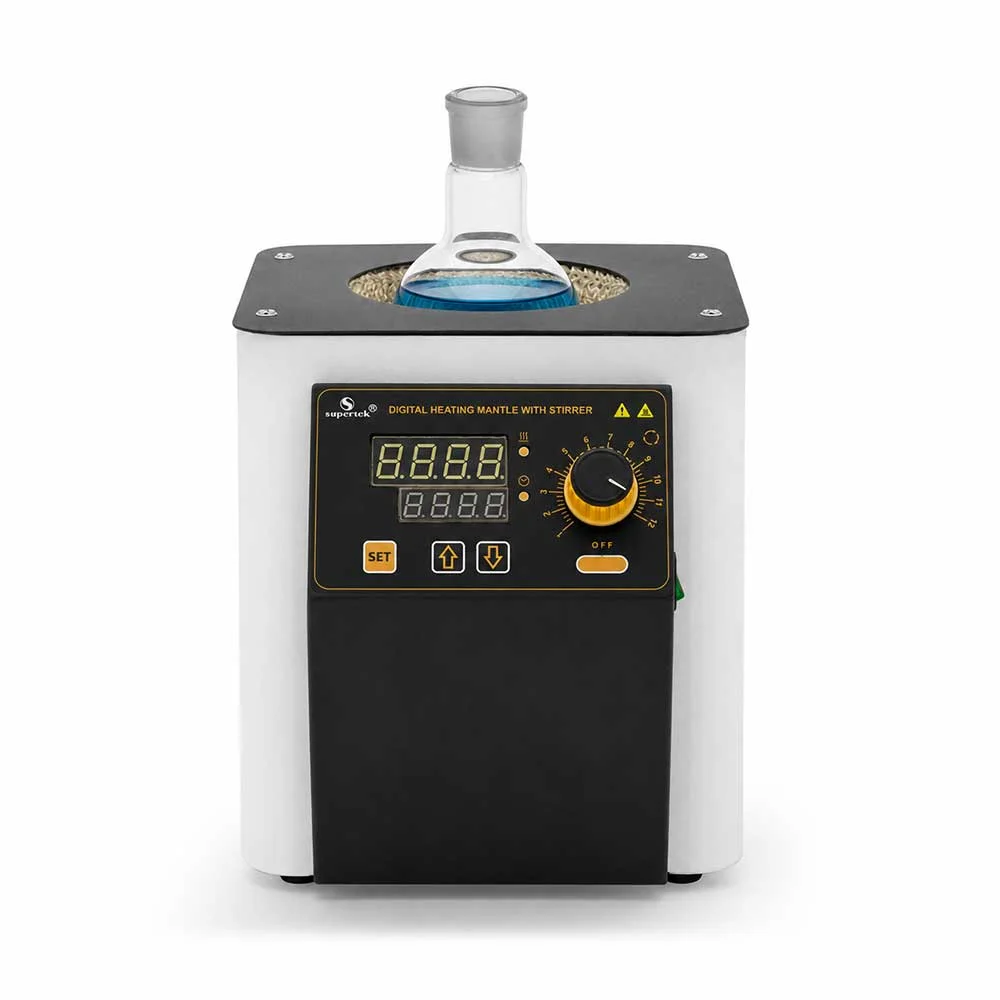

Heating Mantle with Stirrer, Digital

Heating Mantle with Stirrer, Digital

Availability:

In Stock

supertek’s digital heating mantle with magnetic stirrer offers precise PID temperature control together with adjustable magnetic stirring in a single unit. Insert the PT100 probe to measure and control the liquid temperature directly. Supplied with a robust MS (mild steel) rectangular body.

Features:

  • With non-slip rubber feet
  • Temperature probe PT100
  • For use with round bottom flasks
  • Includes support rods and boss head
  • Precise temperature control with PID controller
  • LED display for showing actual and set temperature
  • Built-in magnetic stirrer with adjustable stirring speed
  • Independent temperature and stirring speed control
  • Outer body is made from powder-coated MS (mild steel), rectangular construction
  • Glass fibre yarn knitted heating element provides uniform heating to the flask

Technical Specifications:

  • CE Marked/Compliant
  • Overload protection
  • Input voltage: 220 V AC ± 10%, 50/60 Hz
  • Temperature accuracy ± 0.5°C, Resolution 0.1°C
  • Temperature range of PT100: Ambient + 5°C to 250°C
  • Stirring speed: Upto 1200 RPM
  • Temperature range of heating surface: Ambient + 5°C to 400°C
  • Timer: Up to 9999 mins
  • IP Rating: IP20

Note: Heating element cording may be slightly brown in colour due to QC testing.

HMSRT

Cat. No.Flask Capacity, mlPower, WPack SizeQuantity
HMSRT-D-5050601
HMSRT-D-100100601
HMSRT-D-2502501501
HMSRT-D-5005002001
HMSRT-D-1L10003001
HMSRT-D-2L20004501
HMSRT-D-3L30006001
HMSRT-D-5L50006001
HMSRT-D-10L1000012001

Scope of Supply

  • Main unit
  • Instruction Manual
  • Power cord
  • Support rod
  • Boss head
  • Probe clamp
  • PT100 temperature probe
  • PTFE-coated magnetic stir bar
Cat. No.: HMSRT Category:
Flask Capacity, ml

50, 100, 250, 500, 1000, 2000, 3000, 5000, 10000

Power, W

60, 150, 200, 300, 450, 600, 1200

Pack Size

1
