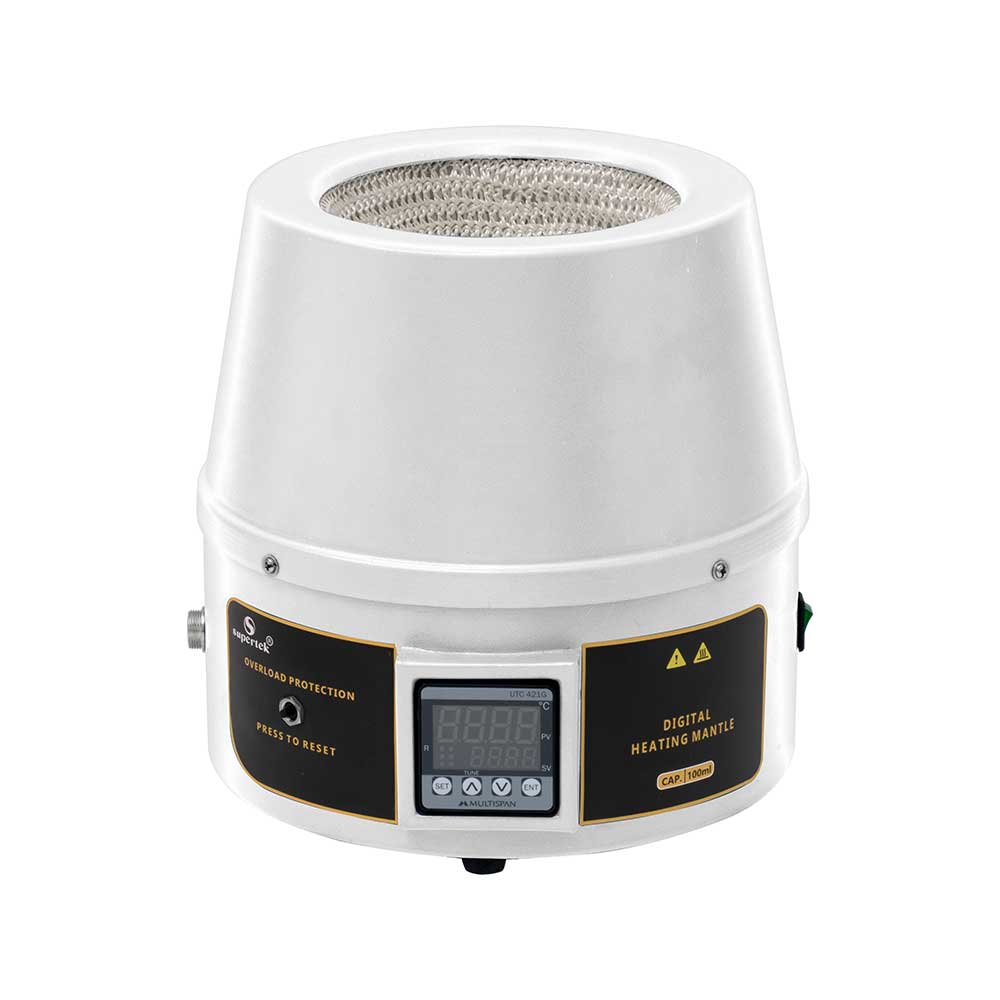

Heating Mantles, Digital

Heating mantles are used to uniformly heat liquids placed in round bottom flasks. Insert the external probe in the liquid solution and measure/control the temperature of the liquid directly with these highly accurate digital heating mantles.

Features :

• With non-slip rubber feet
• Temperature probe PT100
• For use with round bottom flasks
• Includes support rods and boss head
• Precise temperature control with PID controller
• LED display for showing actual and set temperature
• Measure and control the temperature of liquid directly
• Outer body is made from powder-coated rolled aluminium
• Glass fibre yarn knitted heating element provides uniform heating to the flask

Technical Specifications

• CE certified
• Overload protection
• Input voltage: 220 V AC ± 10%, 50/60 Hz
• Temperature accuracy ± 0.5°C, Resolution 0.1°C
• Temperature range of PT100: Ambient + 5°C to 250°C
• Temperature range of heating surface: Ambient + 5°C to 400°C

Note: The heating element cording may be slightly brown in colour. This is a result of testing during the QC process.
