Heating Mantles

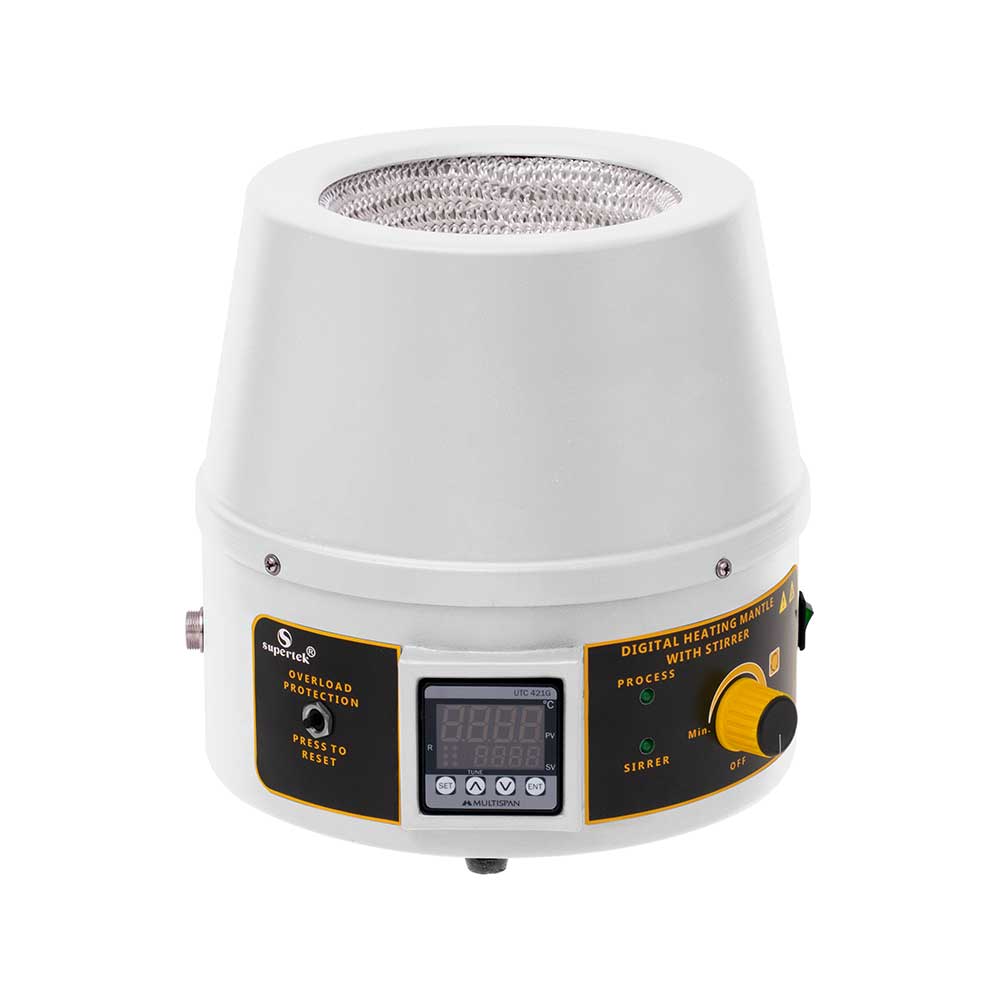

Heating Mantle With Stirrer, Digital
Availability:
In Stock
Supertek heating mantles with stirrer, also known as Rota mantles, provide fast and uniform heating and stirring to round bottom flasks with a temperature range of 350°C and an RPM of 1200. It consists of a metal housing that wraps around the bottom and sides of a flask. The outer cabinet is made of powder coated rolled aluminium and has a glass fibre yarn knitted heating element. Temperature is controlled by an PID controller.
Features:
- Advanced PID technology provides precise temperature control
- The built-in stirrer offers efficient mixing during the heating.
- Non-slip rubber feet
- Overload Protection
- CE certified
Technical Specifications:
- Capacities Available: 50mL to 5L
- Temperature range: Ambient + 5°C to 350°C
- Temperature accuracy: ± 0.5°C; Resolution 0.1°C
- Temperature Control: PID controller
- Temperature probe PT100
- Stirring Speed Range: up to 1200 RPM
- Input voltage: 230 V AC ± 10, 50-60 Hz
CH11172D
| Cat. No. | Capacity, ml | Rating (W) | Pack size | Quantity | |
|---|---|---|---|---|---|
| CH11172D/8 | 5000 | 600 | 1 | ||
| CH11172D/7 | 3000 | 450 | 1 | ||
| CH11172D/6 | 2000 | 450 | 1 | ||
| CH11172D/5 | 1000 | 300 | 1 | ||
| CH11172D/4 | 500 | 200 | 1 | ||
| CH11172D/3 | 250 | 150 | 1 | ||
| CH11172D/2 | 100 | 60 | 1 | ||
| CH11172D/1 | 50 | 60 | 1 |
| Capacity, ml | 50, 100, 250, 500, 1000, 2000, 3000, 5000 |
|---|---|
| Rating (W) | 60, 150, 200, 300, 450, 600 |
| Pack size | 1 |
