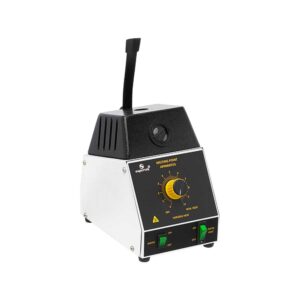

Melting Point Apparatus

supertek’s melting point apparatus is a reliable device used to determine the melting points for different substances that have melting points up to 450°c. We can measure 3 samples simultaneously. The temperature is regulated by the knob fitted on the front panel. A white led is given inside the unit for the clearest view of the melting process. A lens window is also provided at the front panel for the best view of the melting process. We can also change the background behind the capillary tubes with the help of a knob given at the backside.

Features:

• Compact Size
• Easy Operation
• Rapid heat feature
• Durable Construction
• Multiple Sample Capacity
• Thermometer support holder
• Background light for a clearer view

Technical Specifications:

• Samples capacity: 3
• Temperature Control: Knob
• Application Type: Melting Point
• Temperature Range: up to 450°C
• Dimensions: 205 x 125 x 185 (L x W x H)
• Input Voltage: 220 V AC ± 10%, 50/60 Hz
• Capillary Tube: 100×1.4×1 mm (L x OD x ID)
