Heating Mantles
Showing all 7 results
- Heating Mantles, Laboratory Equipment
Fabric Heating Mantles
Supertek fabric heating mantles provide even controlled heat to round-bottom flasks. It is made out of a flexible insulating fabric that wraps around the container and has an embedded heating element. The fabric exterior delivers effective warmth in a space-saving form. Fabric interior for softly nesting glass vessels to reduce thermal stress and glassware breakage. To prevent overheating, the Mantles use a controlled electrical power supply.
Features:
- This mantle ensures that heat distributes uniformly across the whole surface of the container
- These mantles come in a variety of sizes to accommodate various container sizes
- They generally are easy to install and remove, making changing between containers easy
- The insulating fabric reduces the possibility of burns or mishaps
- The fabrics used in fabric heating mantles are chemical resistant
- Heat rate is controlled by an electronic voltage controller
- Fabric heating mantles are often less expensive
- Space saving design
- CE certified
Technical Specifications:
- Capacities 50mL to 5L
- Temperature range of heating surface: Ambient + 5°C to 350°C
CH11160 - Heating Mantles, Laboratory Equipment
Fabric Heating Mantle Controller
To ensure safe operation of the fabric heating mantle, this controller provides a controlled voltage.
Features:
- For use with fabric heating mantles
- Compact and safe design
- Adjustable knob for heat control
- Input voltage: 230 V AC ± 10%, 50-60 Hz
- CE certified
Documents Included:
- Installation certificates
- Warranty Certificate
- Instruction Manual
CH11160C - Heating Mantles

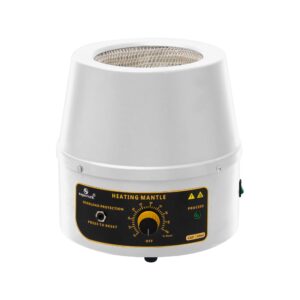

Heating Mantles, Analog
Supertek’s heating mantle is a dependable and cost-effective solution for your laboratory’s basic heating requirements. This heating mantle, designed for use with round-bottom glassware, provides uniform efficient heating for a wide range of applications.
Features:
- With non-slip rubber feet
- For use with round bottom flasks
- Includes support rods and boss head
- Heat liquid solutions placed in round bottom flasks
- Heat is controlled with an in-built electronic circuit card
- The outer body is made from powder-coated rolled aluminum
- Glass fiber yarn knitted heating element provides uniform heating to the flask
Technical Specifications:
- CE certified
- Overload protection
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Temperature range of heating surface: Ambient + 5°C to 400°C
Note: The heating element cording may be slightly brown in colour. This is a result of testing during the QC process.
CH11161 - Heating Mantles

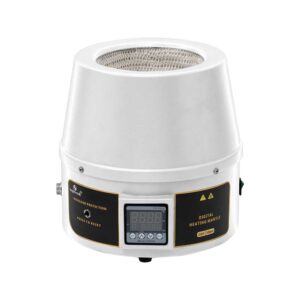

Heating Mantles, Digital
Heating mantles are used to uniformly heat liquids placed in round bottom flasks. Insert the external probe in the liquid solution and measure/control the temperature of the liquid directly with these highly accurate digital heating mantles.
Features :
- With non-slip rubber feet
- Temperature probe PT100
- For use with round bottom flasks
- Includes support rods and boss head
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Measure and control the temperature of liquid directly
- Outer body is made from powder-coated rolled aluminium
- Glass fibre yarn knitted heating element provides uniform heating to the flask
Technical Specifications
- CE certified
- Overload protection
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Temperature accuracy ± 0.5°C, Resolution 0.1°C
- Temperature range of PT100: Ambient + 5°C to 250°C
- Temperature range of heating surface: Ambient + 5°C to 400°C
Note: The heating element cording may be slightly brown in colour. This is a result of testing during the QC process.
CH11161D - Heating Mantles

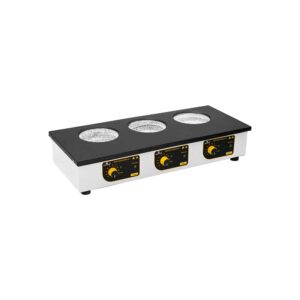

Heating Mantle, Multi Position
Supertek Multi-position mantles can heat 3 to 6 round bottom flasks at the same time. It is made up of powder coated MS that wraps around the bottom and sides of a flask. They usually serve for extraction and are capable of simultaneously heating multiple flasks. Heat rate is controlled by an electronic voltage controller.
Features:
- Different capacities for various laboratory requirements
- Outer body is made of powder coated mild steel
- Glass fibre yarn knitted heating element
- Each position has an independent heat control knob
- Heat rate is controlled by an electronic voltage controller
- Includes support rods and boss heads
- With non-slip rubber feet
- Space saving design
- Overload protection
- CE certified
Technical Specifications:
- Capacities Available: 100mL to 1000mL
- Temperature range of heating surface: Ambient + 5°C to 350°C
- Available in 3 & 6 position
- Input voltage: 230 V AC ± 10%, 50-60 Hz
CH11162A - Heating Mantles

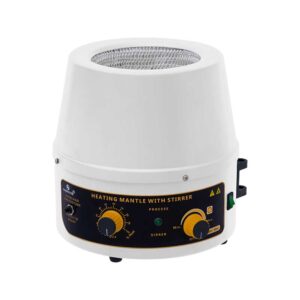

Heating Mantle With Stirrer
Supertek heating mantles with stirrer, also known as Rota mantles, provide fast and uniform heating and stirring to round bottom flasks with a temperature range of 350°C and RPM up to 1200. It consists of a metal housing that wraps around the bottom and sides of a flask. The outer cabinet is made of powder coated rolled aluminium and has a glass fibre yarn knitted heating element. Heat rate is controlled by an electronic voltage controller.
Features:
- The built-in stirrer offers efficient mixing during the heating process
- Temperature and stirring can be controlled simply by rotating knobs
- Heat rate: controlled with electronic voltage controller
- Non-slip rubber feet
- Overload Protection
- Economical model
- CE certified
Technical Specifications:
- Capacities Available: 50mL to 5L
- Temperature Range: ambient ±5 to 350°C
- Stirring Speed Range: up to 1200 RPM
- Heat control: Electronic Voltage controller
- Input voltage: 230VAC±10, 50-60 Hz
Note: The heating element cording may be slightly brown in colour. This is a result of testing during the QC process.
CH11172 - Heating Mantles

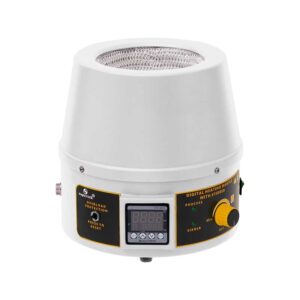

Heating Mantle With Stirrer, Digital
Supertek heating mantles with stirrer, also known as Rota mantles, provide fast and uniform heating and stirring to round bottom flasks with a temperature range of 350°C and an RPM of 1200. It consists of a metal housing that wraps around the bottom and sides of a flask. The outer cabinet is made of powder coated rolled aluminium and has a glass fibre yarn knitted heating element. Temperature is controlled by an PID controller.
Features:
- Advanced PID technology provides precise temperature control
- The built-in stirrer offers efficient mixing during the heating.
- Non-slip rubber feet
- Overload Protection
- CE certified
Technical Specifications:
- Capacities Available: 50mL to 5L
- Temperature range: Ambient + 5°C to 350°C
- Temperature accuracy: ± 0.5°C; Resolution 0.1°C
- Temperature Control: PID controller
- Temperature probe PT100
- Stirring Speed Range: up to 1200 RPM
- Input voltage: 230 V AC ± 10, 50-60 Hz
Note: The heating element cording may be slightly brown in colour. This is a result of testing during the QC process.
CH11172D
